0,4W power amplifier with 5G37 IC

Posted by Electronic Circuit at 1:45 AM
This circuit requires a voltage of 6-12 Volts. To have a good quality of this series with the voltage necessary suplly good too. The definition of good that is filtered and does not release much ripple voltage and using large-capacity condenser elco issued for the bass is strong enough.

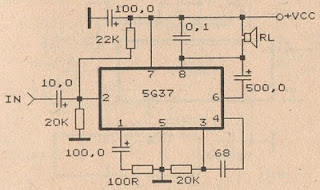

See below this circuit :
rangkaian amplifier menggunakan ic

Technical information about power amplifier with IC 5G37

Datasheet IC 5G31A
Vcc                = 6-12 V
Pout               = 0,4 W
RL                 = 8 Ohm
Ft                   = 40-17 Khz
Icco               = 15 mA
Package         = TABS1-14
Manufactered = China
