2SC5200 and 2SA1943 high fidelity power transistor

Posted by Electronic Circuit at 5:33 PM
2SC5200 and 2SA1943 transistor amplifier
Here are two transistors manufactured by Toshiba. 2SC5200 and 2SA1943 transistor pair has been widely applied or used in the amplifier power amplifier because the transistor has a large power, and also not too expensive than other large power transistors. This transistor has the advantage of High breakdown voltage: VCEO = 230 V (min), Suitable for use in 100-W high fidelity audio amplifier's output stage. For more information, please see datasheet below.

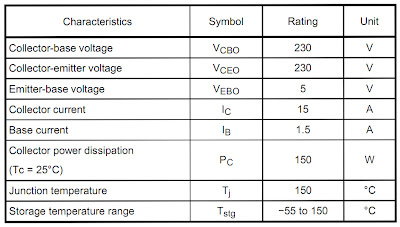

Maximum Ratings (Tc = 25°C)


datasheet 2sc5200 and 2sa1943

Electrical Characteristics (Tc = 25°C)


characteristics transistor 2SC5200 and 2sa1943
